Anser X-Series Controllers
Two thermal inkjet controllers, one job: reliable, high-resolution coding that fits your line. Both the Anser X1 and the X1 Lite run a 7" touchscreen, print up to 600 dpi (60 m/min at 300 dpi; up to ~300 m/min at 60 dpi), and lay down the 1D and 2D codes your customers and retailers ask for — and both run the Odyssey ink line, each with its own printheads (1/2" and 1"). The difference is how much line you’re running.
Not sure which fits? Contact Sales
Anser X1 Lite — cost-efficient, bulk-ink-ready
Built for small and mid-size lines that want the coverage without the overhead. The X1 Lite runs the 1" 160 mL High-Volume System, the lowest running cost at volume — pair it with the 1" bulk printhead and the 160 mL cartridge for the longest runs and fewest changeovers. Multiple DPI settings can cut ink consumption by up to 50%, so you dial quality against cost job by job. Runs one printhead at a time.
- 7" touchscreen · up to 600 dpi · up to ~300 m/min at 60 dpi
- Bulk-ink-ready (160 mL XL Bulk Ink Cartridge)
- Runs the T2 Standard (1/2" or 1") and the T2XL (1" 160 mL)

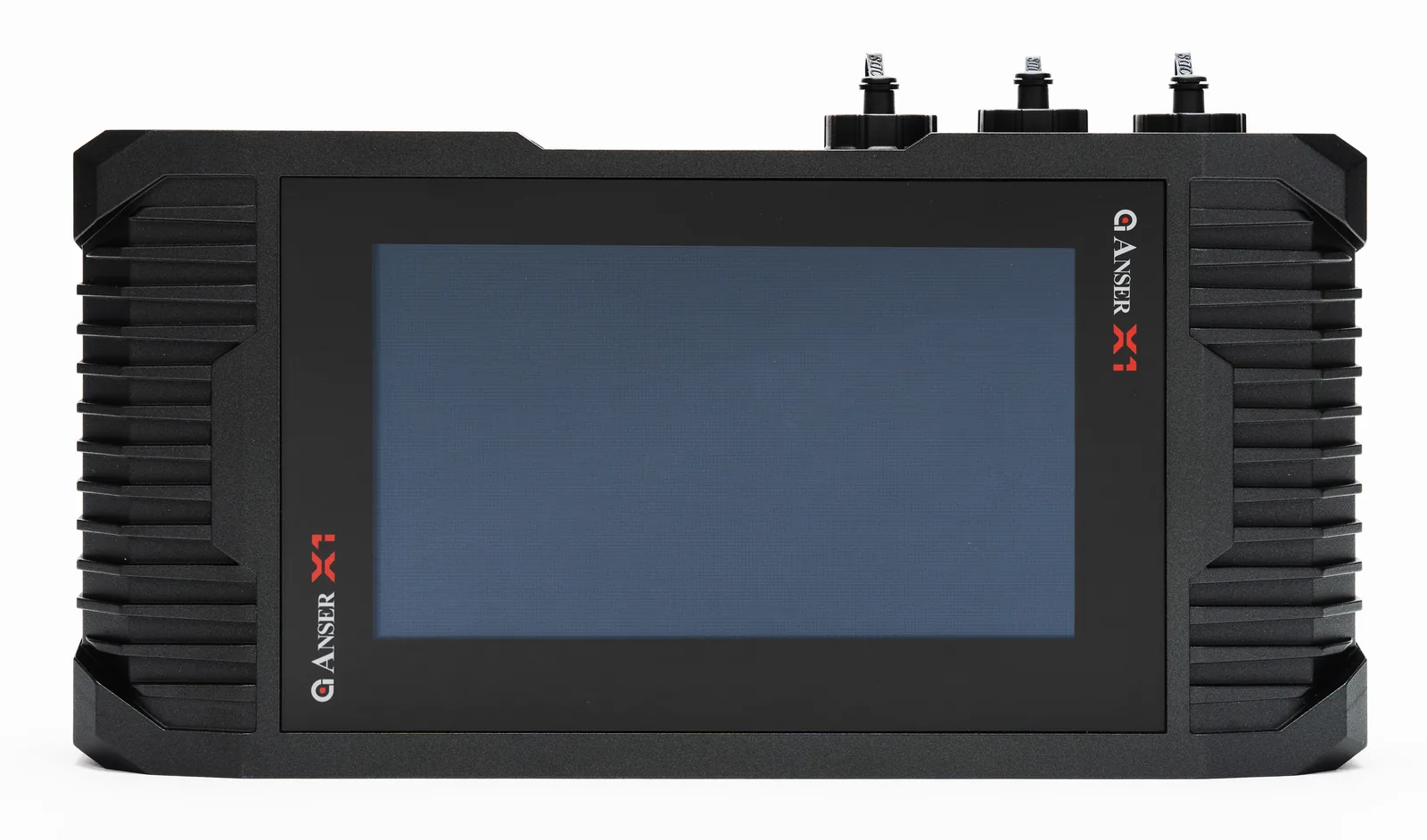

Anser X1 — advanced, dual-line
The step-up controller for demanding and dual-line work. Its controller housing is IP66-rated against dust and water (the printheads carry no IP rating), with a dual-cartridge parallel design for zero-downtime cartridge swaps, and dual-printhead capability — run two heads (stitch two 1" heads for a ~2" print height, or run two lines). Its NexGen coding supports HP, IUT and DHI printhead technologies.
- 7" capacitive touchscreen · IP66 controller housing
- Dual printhead / dual-line · zero-downtime cartridge swaps
- Stitch two 1" heads for 2" (50 mm) print height
- Runs the Type-H or HI-Pro (1/2" or 1") and the T1XL (1" 160 mL)
Shared across both controllers
- ·7" LCD touchscreen; up to 600 dpi; up to ~300 m/min at 60 dpi
- ·160 mL XL Bulk Ink readiness
- ·1D & 2D codes: EAN/UPC, Code 39/128, ITF-14, GS1, QR, Data Matrix, PDF417, Aztec
- ·1/2" and 1" printing (each controller has its own printheads) on the Odyssey ink line
- ·5-year Anser NexGen warranty
Printhead & ink compatibility: each controller has its own printheads, and they don’t swap between controllers. The X1 runs the Type-H or HI-Pro (1/2" and 1" cartridges) and the T1XL (1" 160 mL). The X1 Lite runs the T2 Standard (1/2" and 1" cartridges) and the T2XL (1" 160 mL). The Smart Printhead runs standalone, or as a QuickSync follower to an X1 or X1 Lite. HP, IUT and DHI are the supported cartridge technologies, not separate products. Both controllers run the Odyssey ink line, not Evolution/EV inks.
Explore the system
See it in action
Anser X1 on real production lines
A collection of X1 installations in the field — case and carton coding, PVC pipe, film and foil, dual-color printing, and traversing-system integration.
Not sure which controller fits your line?
Tell us your substrate, line speed, and code type and we’ll spec the right controller, printhead, and ink — and send a quote.
